1, According to: IEC61032:1997 / IEC60529:2001 and UL etc.
2, IEC60529 IP3X Test Probe Pin is the necessary tool to proceed protecting electric shock test of domestic and similar electrical appliances.

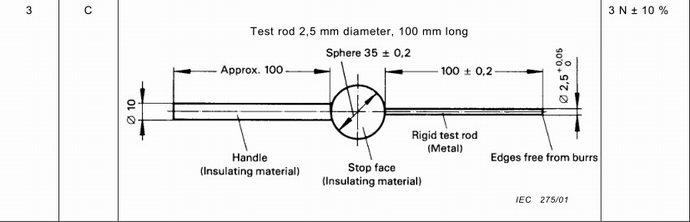

Technical parameters:
1, Test Probe Length: 100 mm
2, Test Probe Diameter: 2,5 mm
3, Dam- sphere Diameter: 35 mm
4, Handle Diameter: 10 mm
5, Handle Length: 100 mm
6, According to IEC61032 figure 3 (the Test probe C) table 6, IEC 60529 the first characteristic digital 3.
Application:
1, Standard test refers to the joint part can't touch the live parts or close to the hazardous parts, and 35mm circular baffle cannot enter .
2, In the test requirement for preventing from approaching to the hazardous parts, Test Probe C need to exert a 3±0,3N force.
Purpose:
This probe is aiming at verifying the basic protection against approaching to hazardous parts.
Note: For the without force products,please use with the dynamometer.
HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
Main Products: Go No Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Plugs and Socket Outlet Gauge, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
