Introduction:
It's strictly designed according to IEC60529 Figure 5, Used to test the waterproof performance of appliance and electric appliance with the rain protection function.
Application:

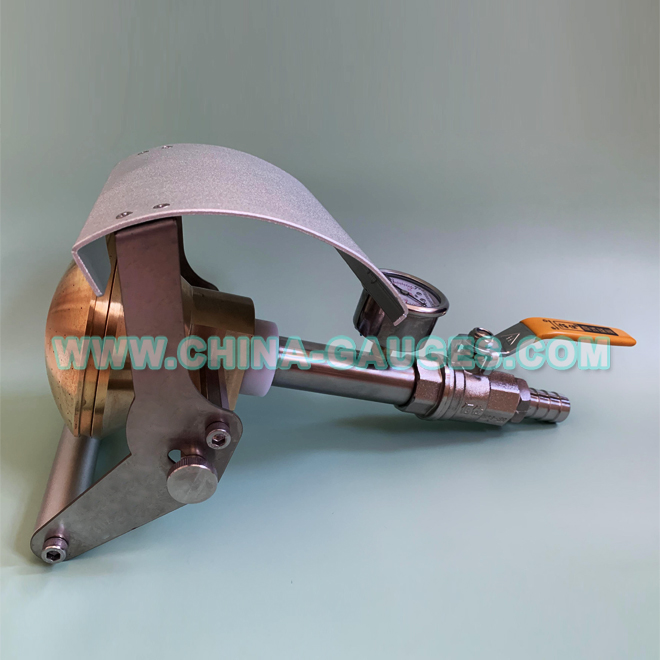

The IPX3 IPX4 Hand-held Spray Nozzle intended for use on specimens that will not fit within the diameter of the Oscillating Tube Tester.
The difference between IPX3 and IPX4 is that the baffle should be removed in the IPX4 test.
|
No. |
Item |
Parameter |
|
1 |
Water supply |
Water flow rate is 0.05 ~ 0.15 Mpa clean water without inclusion. |
|
2 |
Spray nozzle parameters |
External
diameter: Ф102 mm |
|
3 |
Water flow |
10L/min ± 5% |
|
4 |
Reference |
IEC60529 IPX3 IPX4. |
|
5 |
Baffle |
Removable |
|
6 |
Pressure gauge |
0~0.25MPa |
|
7 |
Site requirements |
Dedicated IP waterproof test room, The ground should be flat with illumination, With good function of inflow and drainage. |
