According to IEC60335-2-11:1993 fig 101 and IEC60335-2-6:1997, such as requirements preconditioning of household and similar electrical appliances drum dryers and in vertical ranges, hobs, ovens and other were surface temperature rise measurement.

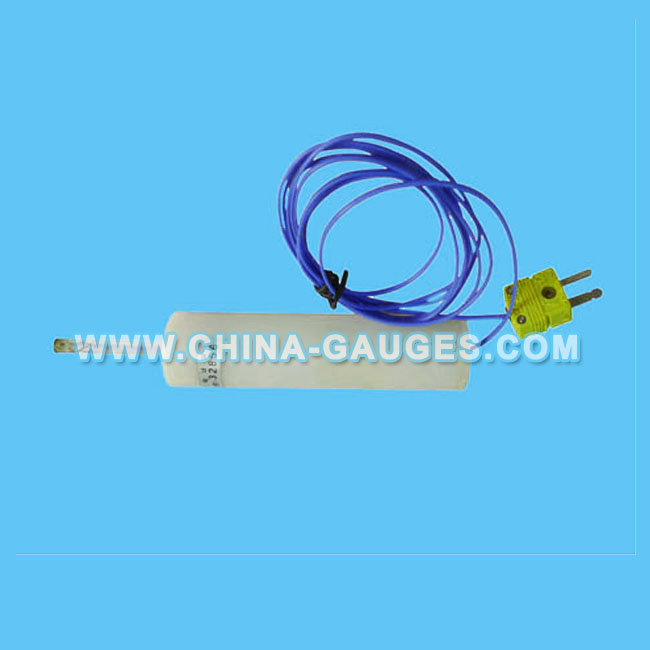

Model: LX-T20
Measurement of the surface: Diameter 5 mm * 0.5 mm tin copper
Bushing: Inside diameter 3 mm, Outside diameter 5 mm
Thermocouple: Diameter 0.3 K
Thrust: 4 N
IEC60335-2-11:2002-03 Figure 101 - Probe for Measuring Surface Temperatures
A) Adhesive
B) Thermocouple wires 0,3 mm diameter to IEC 60584-1 Type K(chrome alumel)
C) Handle arrangement permitting a contact force of 4 N ± 1 N
D) Polycarbonate tube: inside diameter 3 mm, outside diameter 5mm
E) Tinned copper disc: 5 mm diameter, 0,5 mm thick
Note: The contgact face of the disc is to be flat.
HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
Main Products: Go No Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Plugs and Socket Outlet Gauge, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
