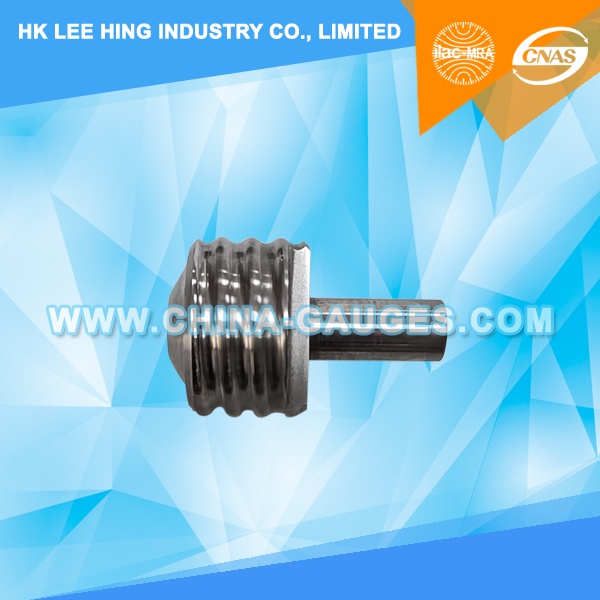

E39 Go Gauge for Screw Thread of Lampholders 7006-24E-1

IEC60061-3: 7006-24E-1 E39 Go Gauge for Screw Thread of Lampholders

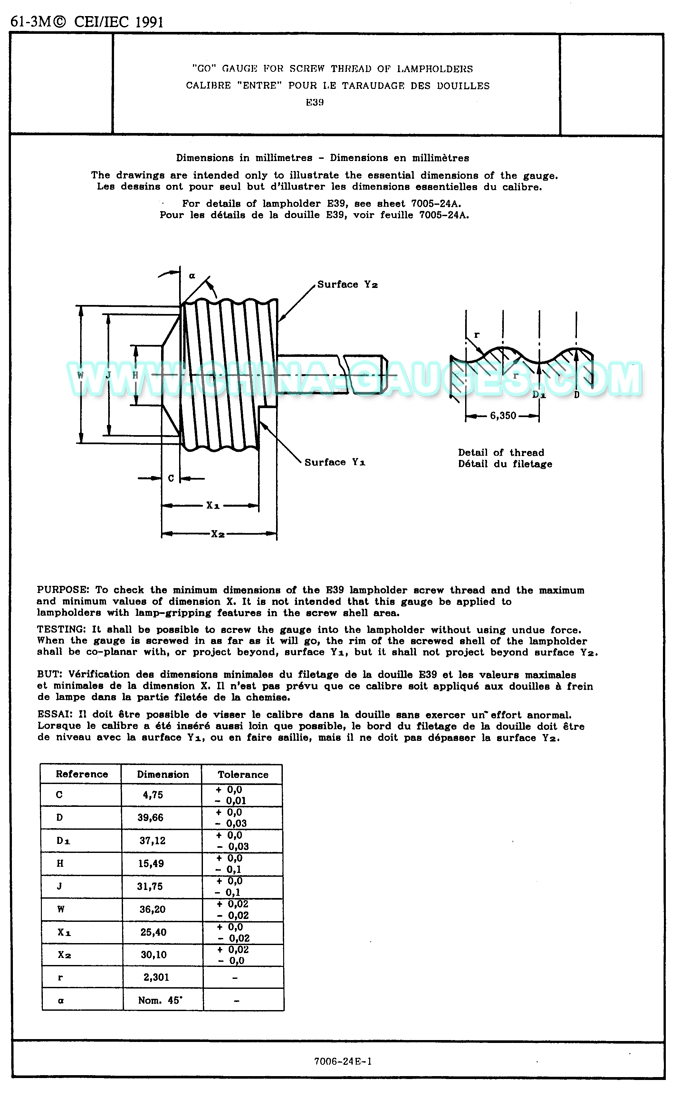

The drawings are intended only to illustrate the essential dimensions of the gauge.

For details of lampholder E39, see sheet 7005-24A.

PURPOSE: To check the minimum dimensions of the E39 lampholder screw thread and the maximum and minium values of dimension X. It is not intonded that this gauge be applied to lampholers with lamp-gripping features in the screw shell area.

TESTING: It shall be possible to screw the gauge into the lampholder without using undue force. When the gauge is screwed in as far as it will go, the rim of the screwed shell of the lampholder shall be co-planar with, or project beyond, surface Y1, but it shall not project beyond surface Y2.

HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.

Main Products: Go No Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, Plugs and Socket Outlet Gauge, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.

If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
