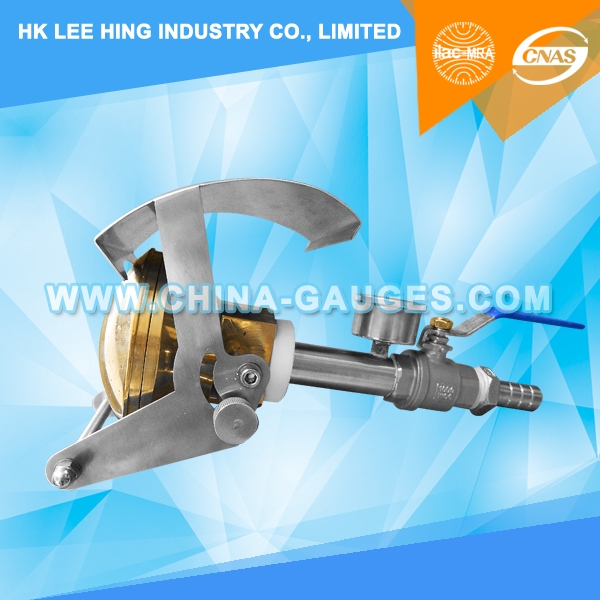

Spray Nozzle IEC 60529 IPX3 IPX4

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Test Report
Item No.: LX-IPX34H
Made in China
Product description: The Spray Tester IPX 3/4 is a hand-held test device to verify protection against spraying and splashing water. The water pressure can be adjusted using the flow control knob on the device to give the required flow rate.
Inquiry Now

PRODUCT INTRODUCTION

Spray Nozzle IEC 60529 IPX3 IPX4

Introduction:

It's strictly designed according to IEC60529 Figure 5, Used to test the waterproof performance of appliance and electric appliance with the rain protection function.

Application:

The IPX3 IPX4 Hand-held Spray Nozzle intended for use on specimens that will not fit within the diameter of the Oscillating Tube Tester.

The difference between IPX3 and IPX4 is that the baffle should be removed in the IPX4 test.

Specifications:

No.	Item	Parameter
1	Water supply	Water flow rate is 0.05 ~ 0.15 Mpa clean water without inclusion.
2	Spray nozzle parameters	External diameter: Ф102 mm spherical diameter: SФ75.5 mm There is a middle hole and There are 24 holes in the internal circle of holes of which the included angle is 30°. There are 96 holes in the external circle of holes of which the included angle is 15°. 121 holes in total. The hole diameter: Ф0.5 mm It is made of brass.
3	Reference	IEC60529 IPX3 IPX4.
4	Baffle	Removable
5	Pressure gauge	0~0.25MPa
6	Site requirements	Dedicated IP waterproof test room, The ground should be flat with illumination, With good function of inflow and drainage.
